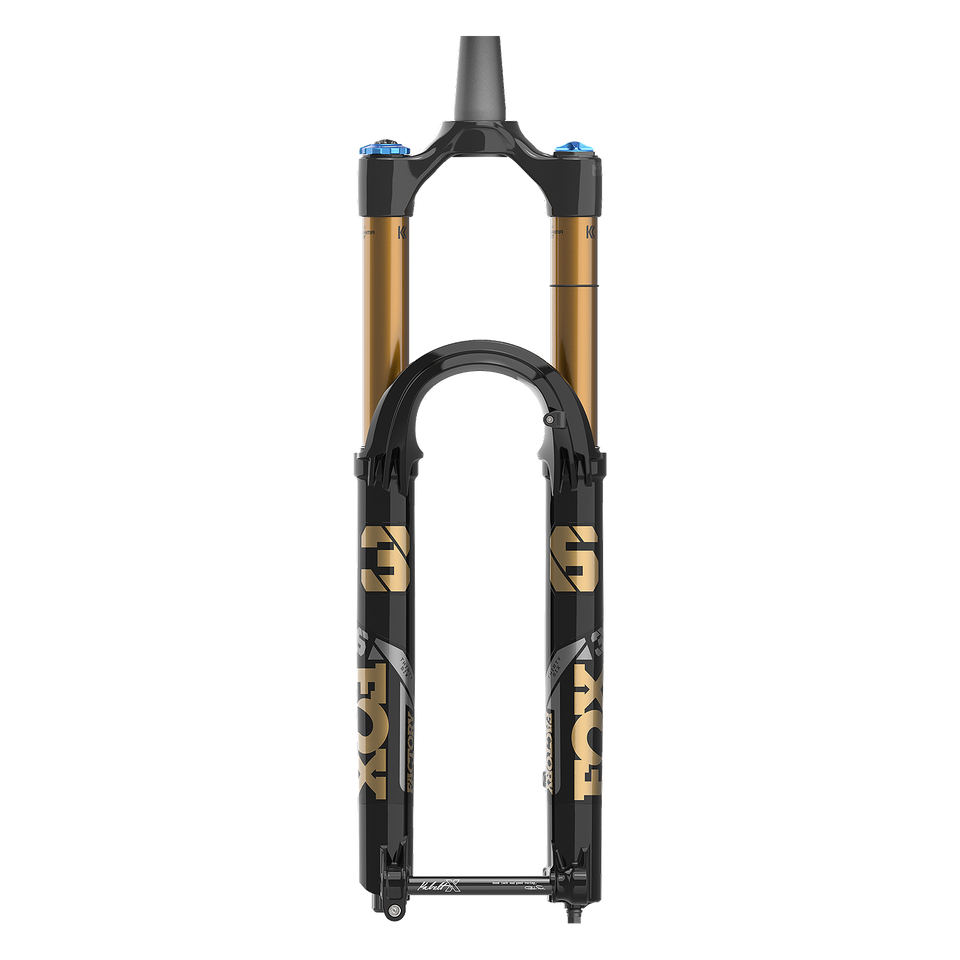

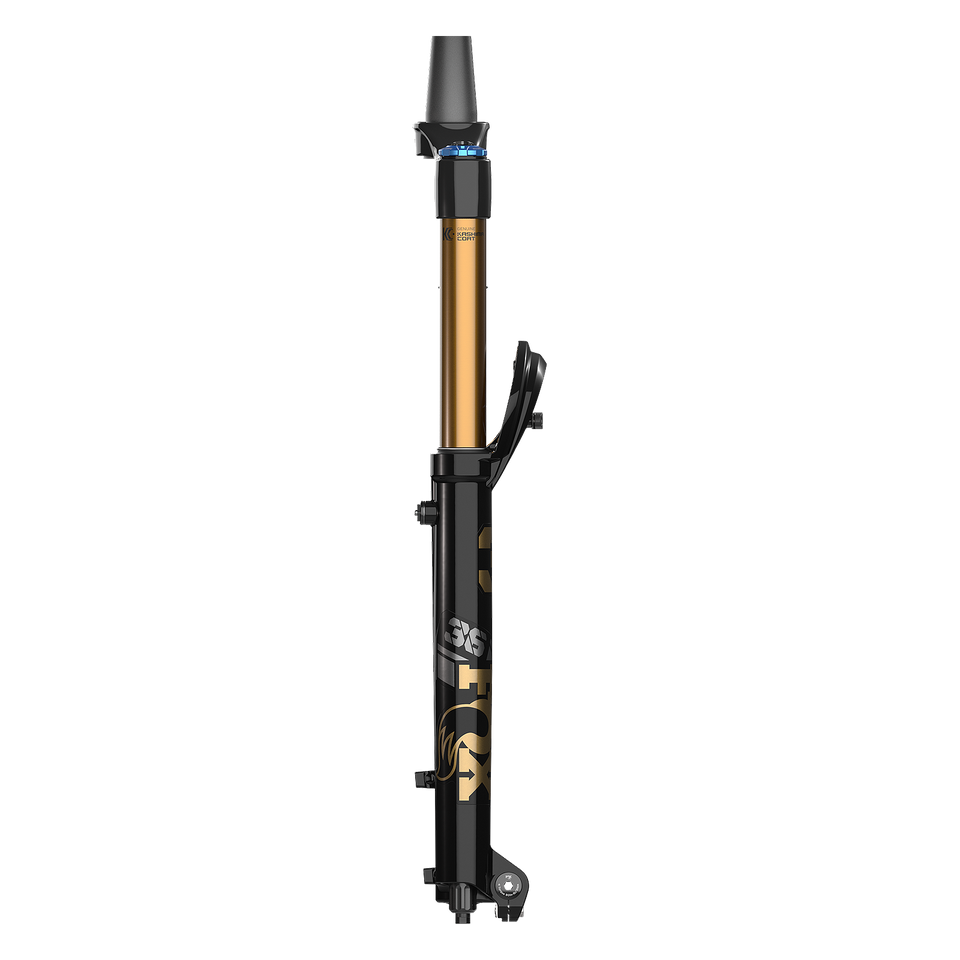

FOX 36 Factory - GRIP X
THE UNDISPUTED ALL-MOUNTAIN CHAMPION
Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.
Your FOX 36 Fork:
| Part Number | 910-21-309 |
| Rake | 44mm |
| Chassis | Standard |
| Wheelsize | 27.5in |
| Series | Factory |
| Travel | 160mm |
| Damper | Grip X |
| Damper Controls | HSC-LSC-LSR |
| Axle | Kabolt-X 110 |
| Steerer | 1.5 T |
| Part Number | 910-21-291 |
| Rake | 44mm |
| Chassis | Standard |
| Wheelsize | 29in |
| Series | Factory |
| Travel | 160mm |
| Damper | Grip X |
| Damper Controls | HSC-LSC-LSR |
| Axle | Kabolt-X 110 |
| Steerer | 1.5 T |
| Part Number | 910-21-290 |
| Rake | 44mm |
| Chassis | Standard |
| Wheelsize | 29in |
| Series | Factory |
| Travel | 160mm |
| Damper | Grip X |
| Damper Controls | HSC-LSC-LSR |
| Axle | Kabolt-X 110 |
| Steerer | 1.5 T |
| Part Number | 910-21-292 |
| Rake | 44mm |
| Chassis | Standard |
| Wheelsize | 29in |
| Series | Factory |
| Travel | 150mm |
| Damper | Grip X |
| Damper Controls | HSC-LSC-LSR |
| Axle | Kabolt-X 110 |
| Steerer | 1.5 T |
FOX 36 Specs
Upper Tube Finish: Kashima Coat
Air Channels: Yes
Bleeders: Yes
Floating Axle: Yes
Rotor Size: 180 direct Post Mount, Up to 230 compatible
Mud Guard Mount: Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1942g
: * Fork weights shown are at 165mm steerer length with star fangled nut and disc brake guide installed.
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
FOX 36 Specs
Upper Tube Finish: Kashima Coat
Air Channels: Yes
Bleeders: Yes
Floating Axle: Yes
Rotor Size: 180 direct Post Mount, Up to 230 compatible
Mud Guard Mount: Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1942g
: * Fork weights shown are at 165mm steerer length with star fangled nut and disc brake guide installed.
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
GRIP X
Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency. Learn more about the new GRIP family.

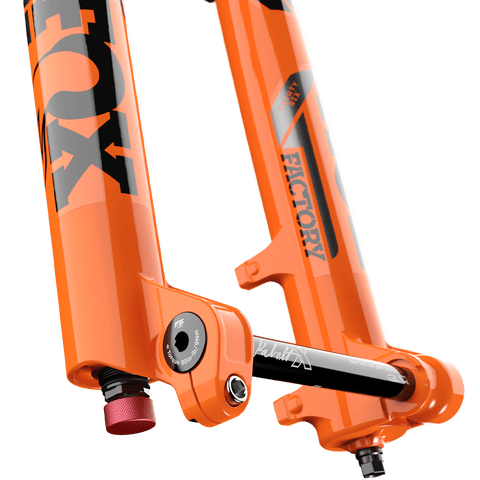

KABOLT X AXLE
A lightweight bolt-on floating axle, the Kabolt X shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design. Chassis alignment reduces unwanted friction between the upper and lower fork legs, providing much smoother suspension movement throughout the entire range of travel. The 36 is also available in a convenient tool-free quick-release lever floating axle.
LOWER LEG BLEEDERS AND BYPASS CHANNELS
Bleeders allow atmospheric pressure equalization at the push of a button. Lower leg bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel. Both result in better fork performance by increasing small bump sensitivity and responsiveness.
