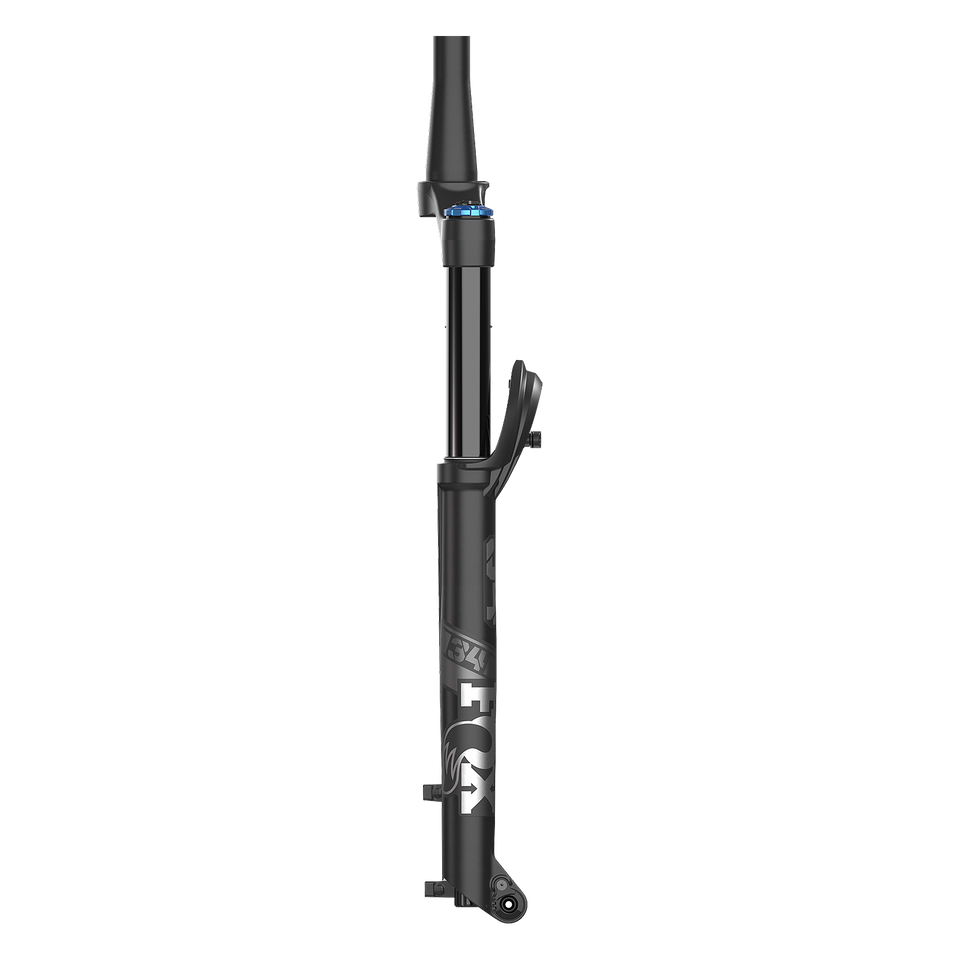

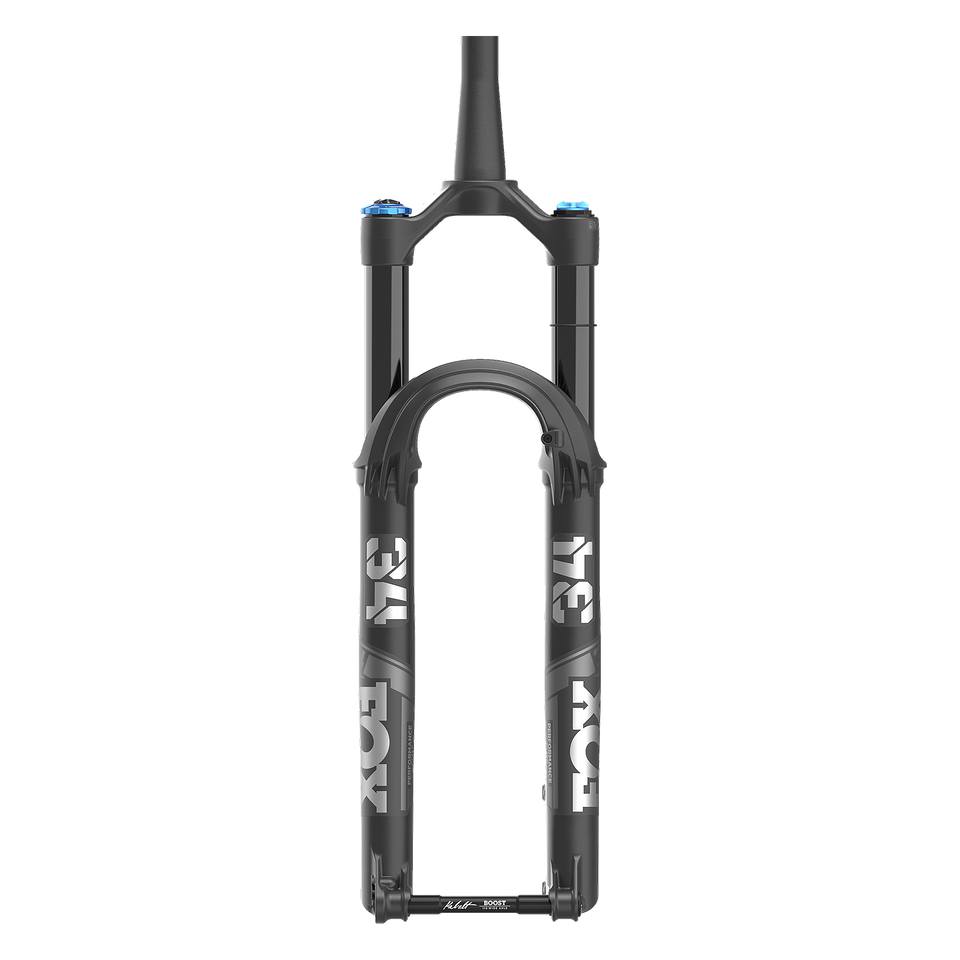

FOX 34 Performance Elite - GRIP X
THE HARD CHARGING DO-IT-ALL TRAIL FORK
A trail fork not to be underestimated, the venerable 34 is more capable than ever before. With damping optimized for trail, the 34 excels at all-mountain descending while keeping the weight low.
Your FOX 34 Fork:
| Part Number | 910-21-294 |
| Rake | 44mm |
| Chassis | Standard |
| Wheelsize | 29in |
| Series | Performance Elite |
| Travel | 130mm |
| Damper | Grip X |
| Damper Controls | HSC-LSC-LSR |
| Axle | Kabolt 110 |
| Steerer | 1.5 T |
FOX 34 Specs
Upper Tube Finish: Black Anodized
Air Channels: Yes
Rotor Size: 180 direct Post Mount, Up to 203 compatible
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1698g
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
FOX 34 Specs
Upper Tube Finish: Black Anodized
Air Channels: Yes
Rotor Size: 180 direct Post Mount, Up to 203 compatible
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1698g
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
GRIP X
Trail riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency. Learn more about the new GRIP family.
LOWER LEG ARCH
The arch design is pairs perfectly with modern trail bikes, where head tube profiles have grown larger and fork offsets shorter. The 34’s arch juts forward to provide ample headtube clearance at full compression. Countless engineering hours created an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.
LOWER LEG BYPASS CHANNELS
As a fork compresses, air pressure increases which can impede the fork reaching its full travel. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and reducing unintended pressure ramping. Lower leg bath oil is also circulated to the upper reaches of the lower legs, continuously lubricating inner seals and bushings.
