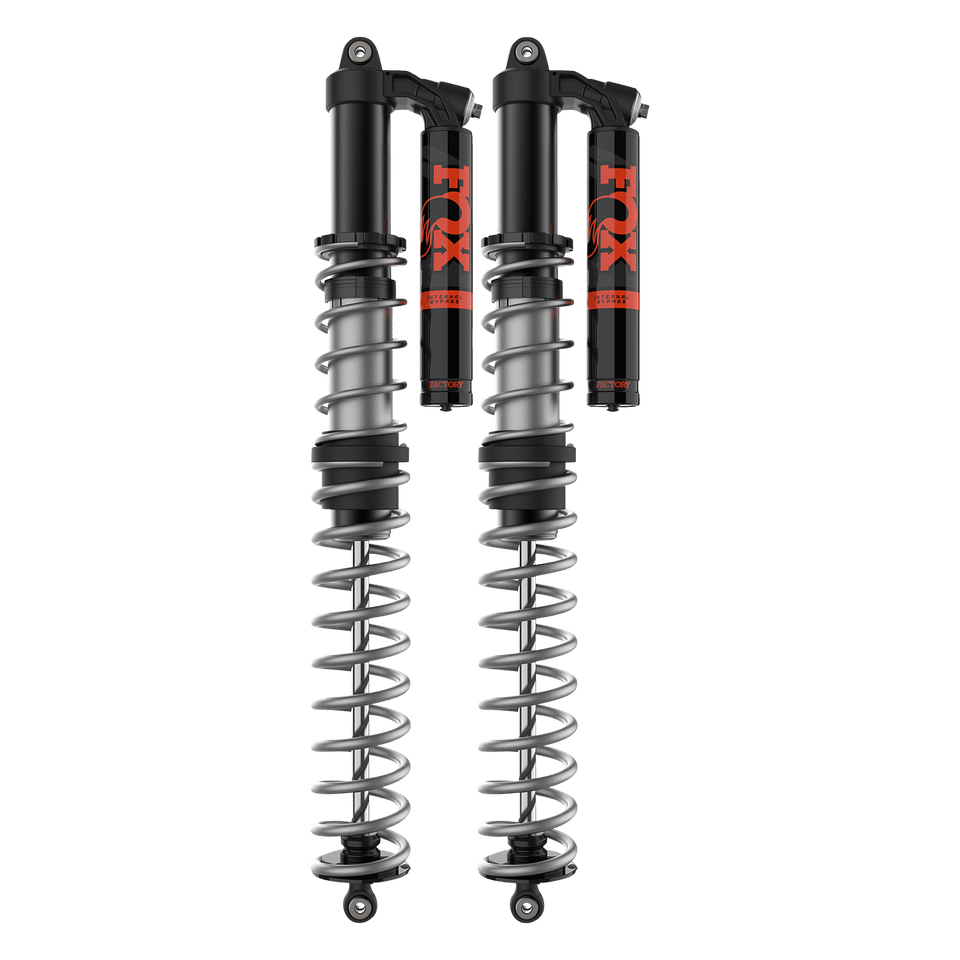

KAWASAKI KRX 1000 | 3.0 FACTORY RACE SERIES
The Factory Race Series 3.0 Internal Bypass RC2 shocks use the same race-proven, position-sensitive damping technology as our external bypass shocks raced on trophy trucks, in a compact and hassle-free package.
These race-level shocks are a direct bolt-on replacement for your stock KRX 1000 rear shocks. They increase the Rear shock body diameters from the stock 2.5” to 3.0\. This increased diameter means that your shocks won’t fade going flat out through the desert
| PART NUMBER | 885-08-509-2 |
| FEATURES |
Position-sensitive internal bypass damping tubes Velocity-sensitive valving, high flow damping piston Piggyback reservoir Silver dual rate race springs with crossover 7/8” Hard-chromed induction hardened shaft PTFE-lined spherical bearings for smooth durable movement Type III Hard-anodized aluminum body and reservoir |
| SERIES | Factory Race |
| TRAVEL | 15.5 |
| EXTENDED LENGTH | 41 |
| COMPRESSED LENGTH | 25.5 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 885-08-509-2 |
| FEATURES |
Position-sensitive internal bypass damping tubes Velocity-sensitive valving, high flow damping piston Piggyback reservoir Silver dual rate race springs with crossover 7/8” Hard-chromed induction hardened shaft PTFE-lined spherical bearings for smooth durable movement Type III Hard-anodized aluminum body and reservoir |
| SERIES | Factory Race |
| TRAVEL | 15.5 |
| EXTENDED LENGTH | 41 |
| COMPRESSED LENGTH | 25.5 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
885-08-509-2 Also Fits
| Year | Make | Model | Sub Model | Drive Type | Fuel Type | Body Num Doors | Type | Position | Lift Height | Fitment Map Details | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2022 | Kawasaki | KRF1000 Teryx KRX 1000 | * | * | * | * | 48166 | Shock Absorber Kit | EA | Rear | 30 | $3,299.99 | |
| 2021 | Kawasaki | KRF1000 Teryx KRX 1000 Special Edition | * | * | * | * | 48166 | Shock Absorber Kit | EA | Rear | 30 | $3,299.99 | |
| 2025 | Kawasaki | KRF1000 Teryx KRX 1000 Blackout Edition | * | * | * | * | 48166 | Shock Absorber Kit | EA | Rear | 30 | $3,299.99 | |
| 2026 | Kawasaki | KRF1000 Teryx KRX 1000 | * | * | * | * | 48166 | Shock Absorber Kit | EA | Rear | 30 | $3,299.99 |
