JEEP WRANGLER | 2.5 FACTORY RACE SERIES

$3,505.81

JEEP WRANGLER | 2.5 FACTORY RACE SERIES

Low Stock

Find a Retailer

View Cart Check Out
Free Shipping Over $199 30 Day Returns

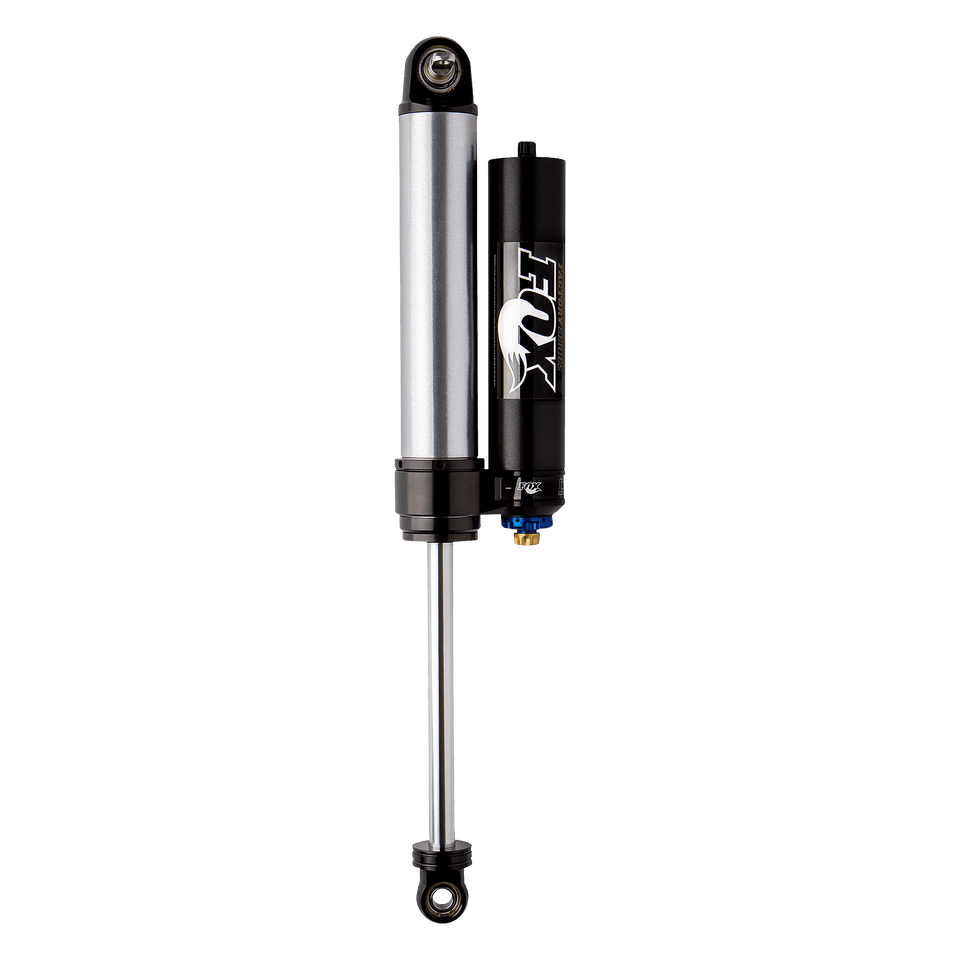

Factory Race Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

External reservoir allows for increase oil and nitrogen capacity while delivering striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Factory Series shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Factory Race Series 2.5 Reservoir shocks deliver.

PART NUMBER 883-26-016
SERIES Factory Race
TRAVEL 10.84
BODY 2.5" smooth bore zinc plated seamless steel body
BODY PLATING Zinc-plated and double-clear coated for long lasting finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 28.04
COMPRESSED LENGTH 17.2
TOP MOUNT Bar Pin
BOTTOM MOUNT Eyelet

883-26-016 Also Fits

Year Make Model Sub Model Drive Type Fuel Type Body Num Doors Type Position Lift Height Price
2011 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2008 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2007 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2015 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2009 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2017 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2013 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2014 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2018 Jeep Wrangler JK * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2012 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2016 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81
2010 Jeep Wrangler * * * * 48166 Shock Absorber Kit EA Rear 30 2.5"-4" $3,505.81

MANUALS & DOCUMENTS

  • 01

    OWNER'S MANUAL

    Full overview manual including tuning, installation, and general owner's manual.

    Download Manual
  • 02

    WARRANTY

    Full warranty information for all FOX suspension products.

    View Warranty
  • 03

    SERVICE

    Keep your suspension performing at factory levels. Get service or upgrade your suspension.

    Get Service
