JEEP GLADIATOR | 2.5 PERFORMANCE SERIES

$681.06

JEEP GLADIATOR | 2.5 PERFORMANCE SERIES

Low Stock

Find a Retailer

View Cart Check Out
Free Shipping Over $199 30 Day Returns

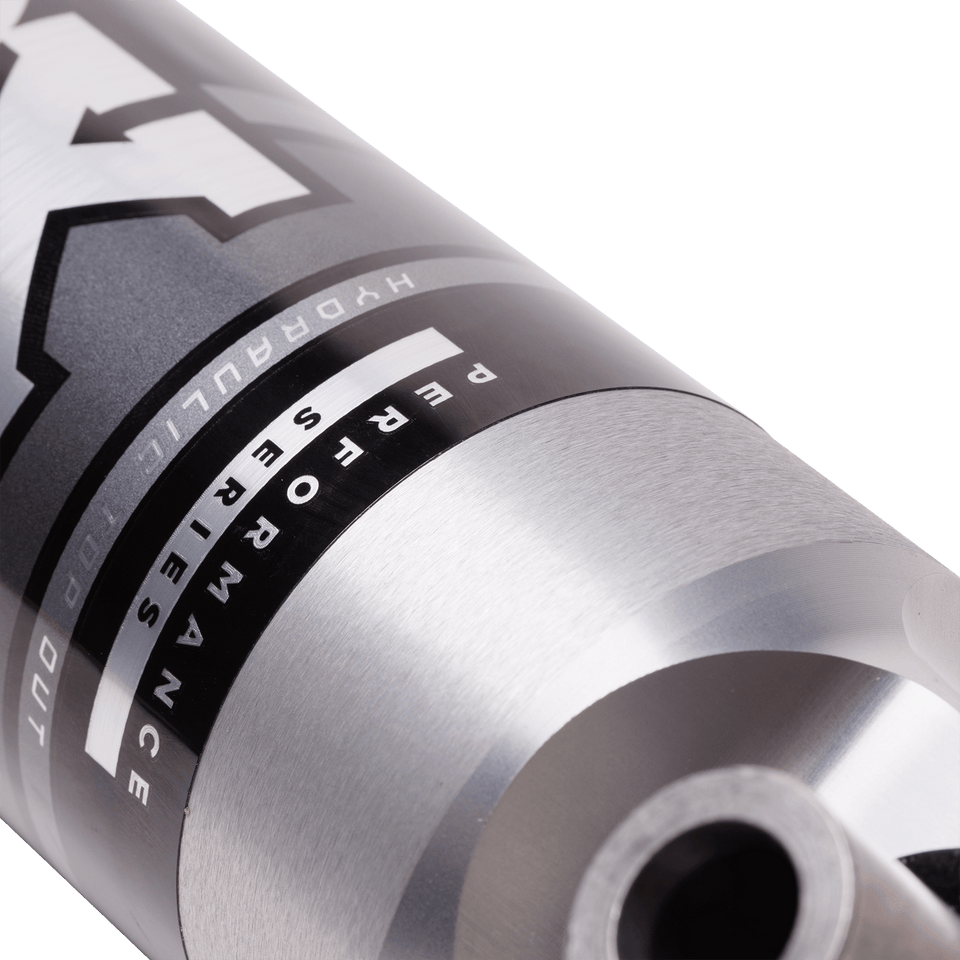

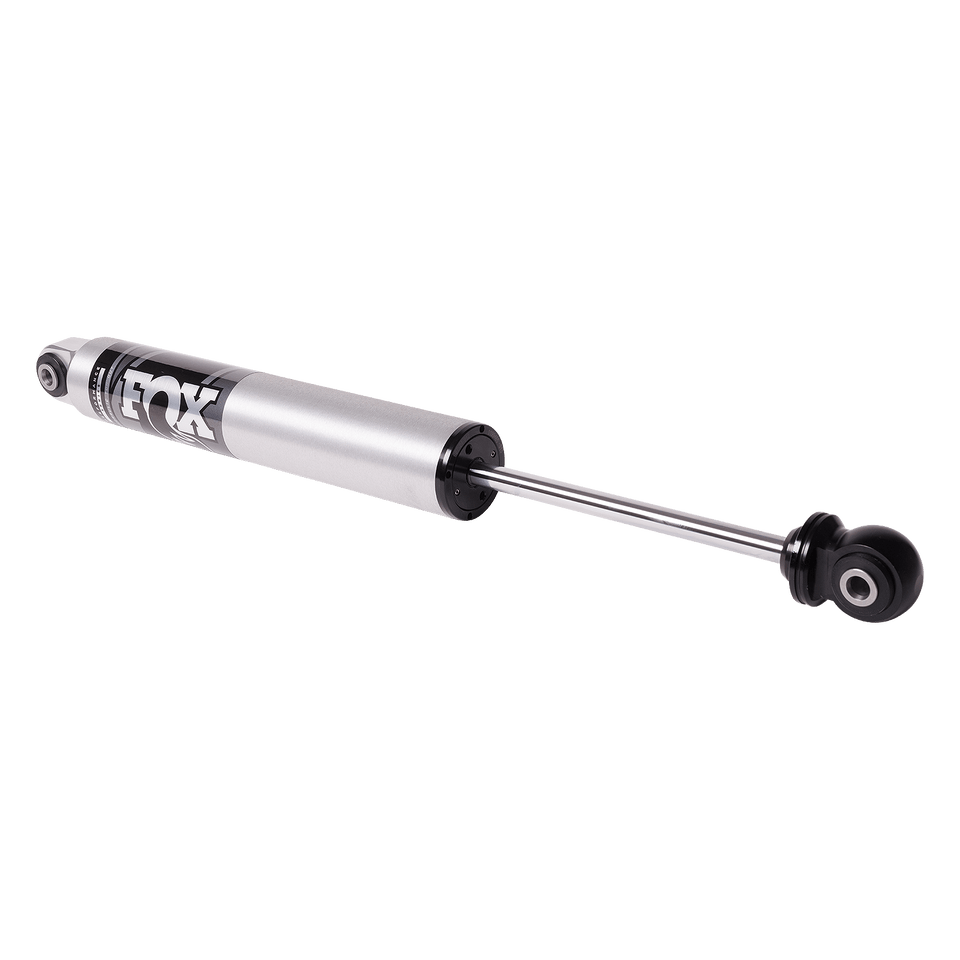

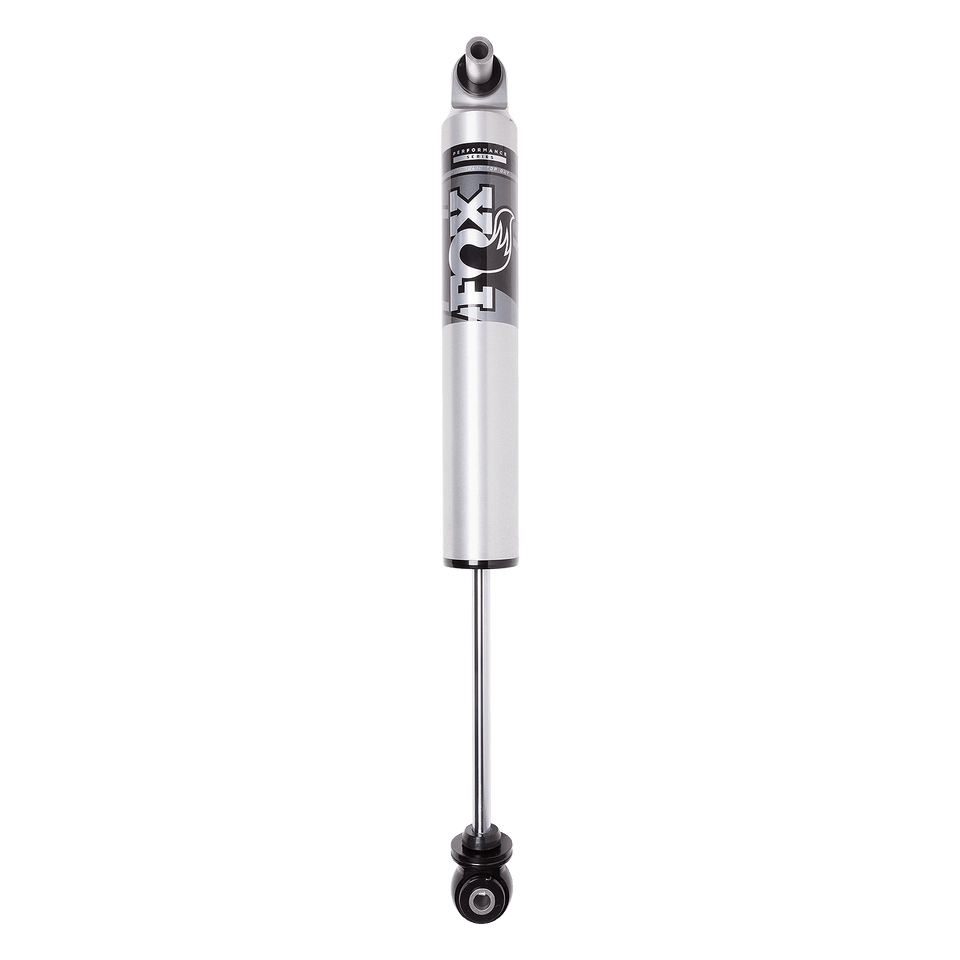

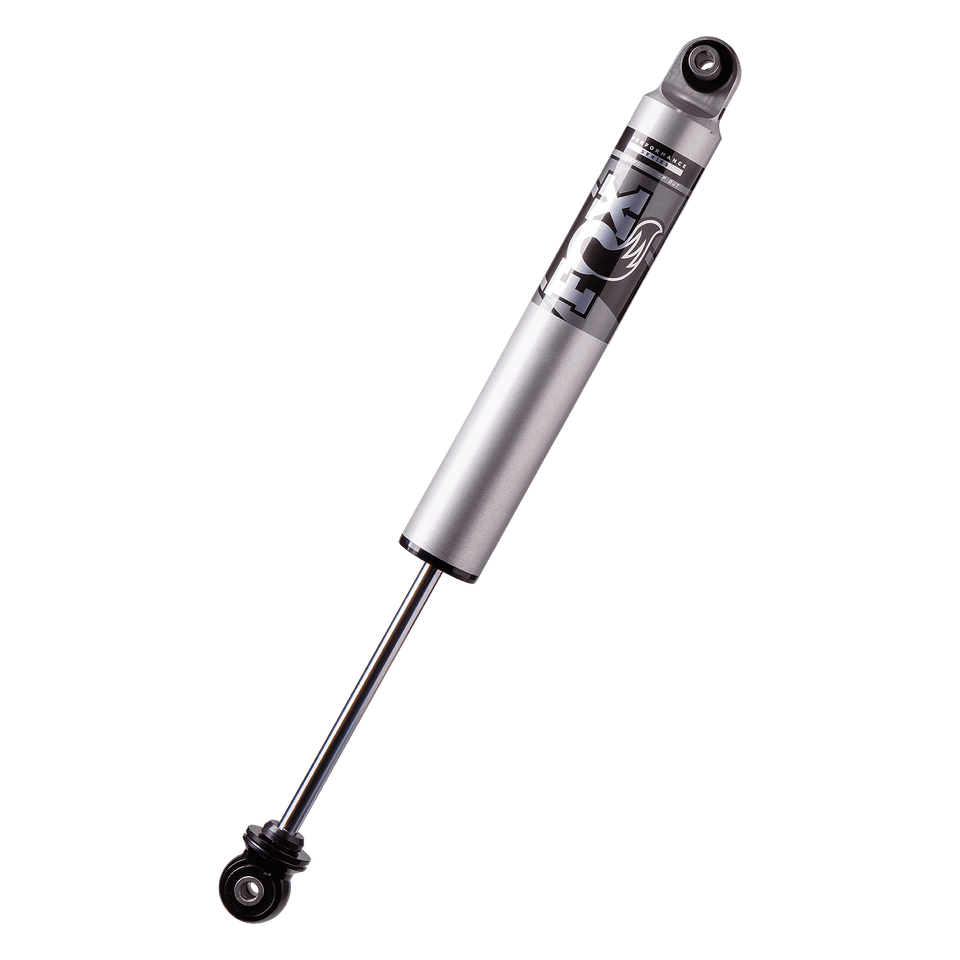

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

PART NUMBER 987-24-016
FEATURES

2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
SERIES Performance
TRAVEL 9.29
EXTENDED LENGTH 26.82
COMPRESSED LENGTH 17.54
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Lift: 2-3 inches

987-24-016 Also Fits

Year Make Model Sub Model Drive Type Fuel Type Body Num Doors Type Position Lift Height Price
2025 Jeep Gladiator Rubicon X * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Freedom * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Overland * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Launch Edition * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator NightHawk * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Willys Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Rubicon Blue Sunrider * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Altitude * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Willys Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Overland * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Overland * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Rubicon X * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator High Tide * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Overland * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator High Altitude * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Rubicon X * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator High Tide * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Altitude * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator 80th Anniversary * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator NightHawk * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator High Altitude * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2021 Jeep Gladiator Willys Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Jeep Beach * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2022 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator Sport S * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2026 Jeep Gladiator Willys * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2024 Jeep Gladiator Rubicon * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2025 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator High Altitude * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2020 Jeep Gladiator Sport * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
2023 Jeep Gladiator Texas Trail * * * 7556 Shock Absorber EA Front 22 2"-3" $681.06
