Harley-Davidson Touring | IFP
SKU: 897-27-100

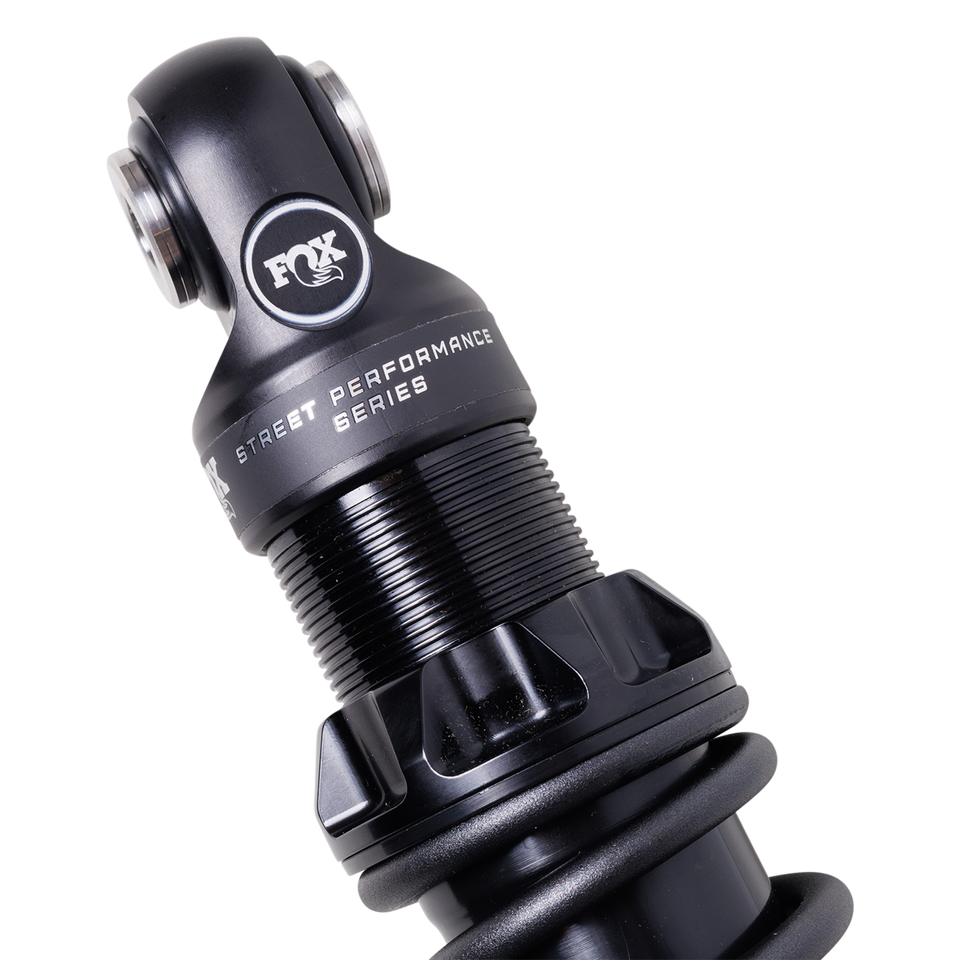

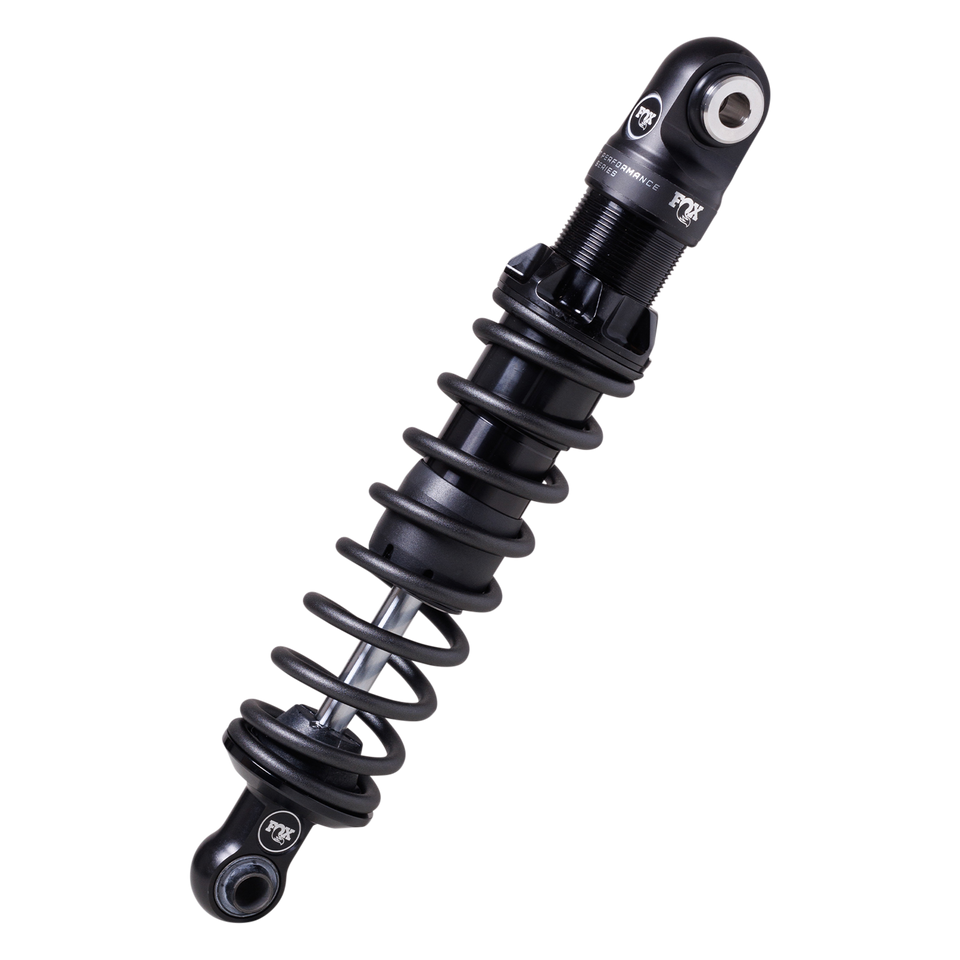

The FOX IFP V-Twin rear shocks have an internal floating piston to prevent air and oil from mixing, ensuring consistent damping control for a smoother ride. Our shocks are designed with vehicle-specific damping and linear spring rates for a confident connection to the road, no matter the riding conditions. Complete your touring bike setup with our GRIP-Street Performance Fork Cartridge Kit to achieve ultimate comfort and control.
| PART NUMBER | 897-27-100 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.35 |
| EXTENDED LENGTH | 12 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-101 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.35 |
| EXTENDED LENGTH | 12 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-102 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.35 |
| EXTENDED LENGTH | 13 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-103 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.35 |
| EXTENDED LENGTH | 13 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-100 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.35 |
| EXTENDED LENGTH | 12 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-101 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.35 |
| EXTENDED LENGTH | 12 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-102 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.35 |
| EXTENDED LENGTH | 13 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 897-27-103 |
| FEATURES |
Model-specific optimized ride tune Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping ½-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.35 |
| EXTENDED LENGTH | 13 |
| COMPRESSED LENGTH | 9.65 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
