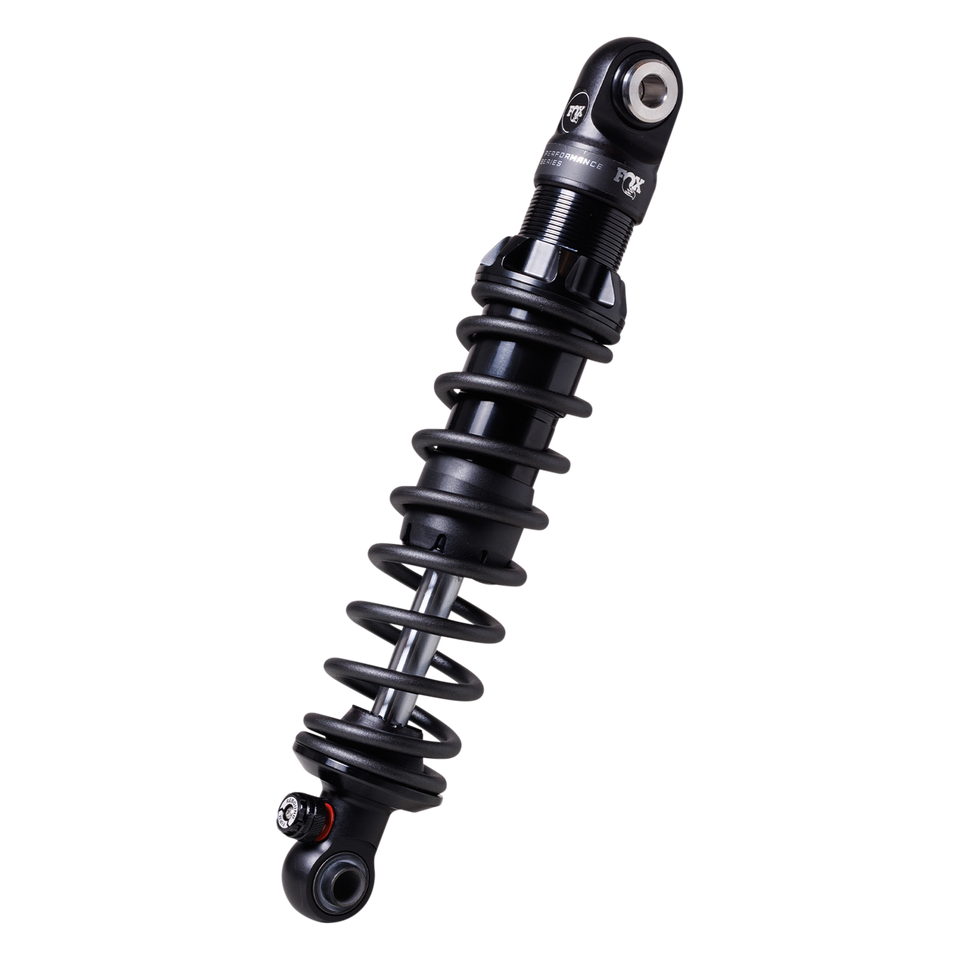

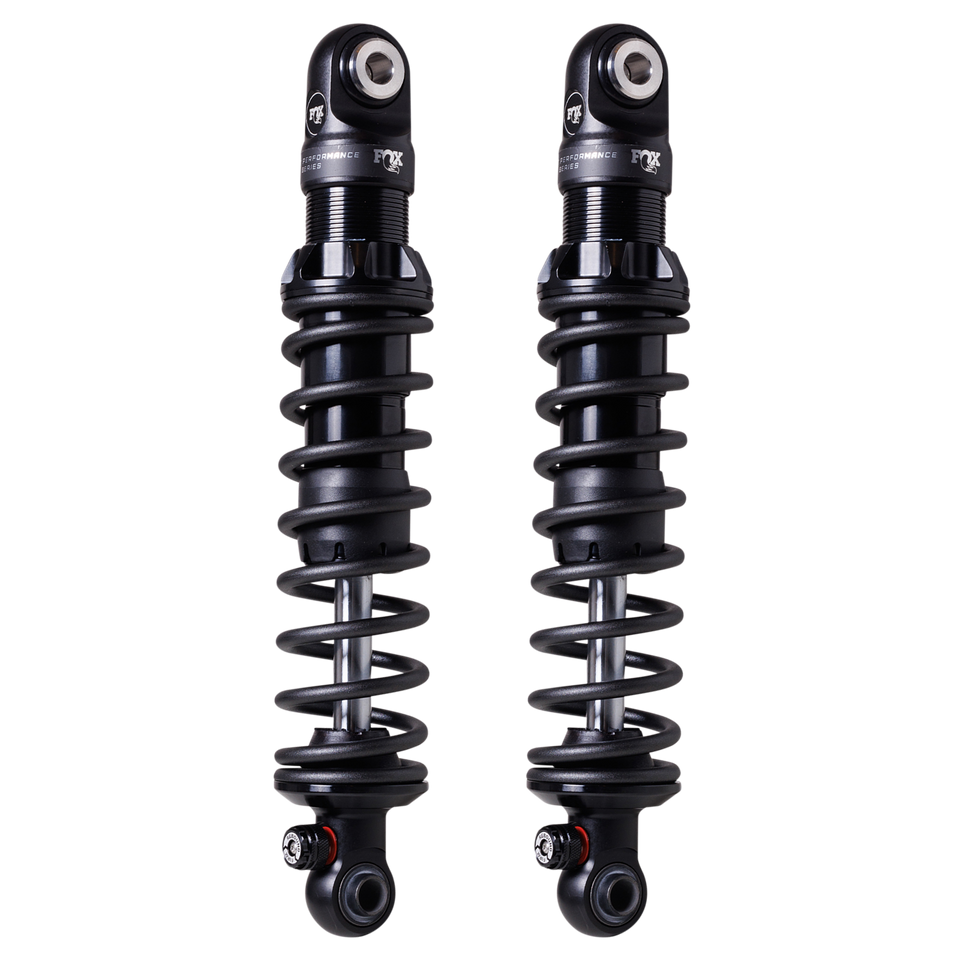

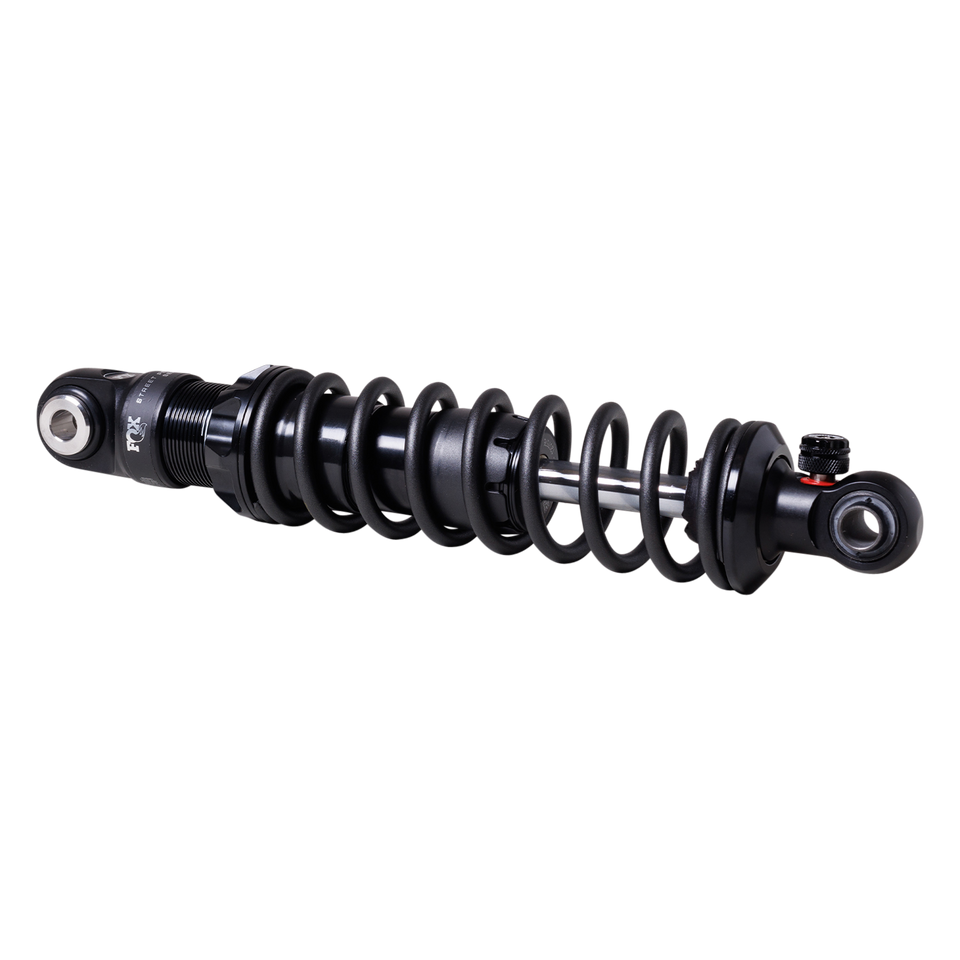

Harley-Davidson FXR | IFP Rebound

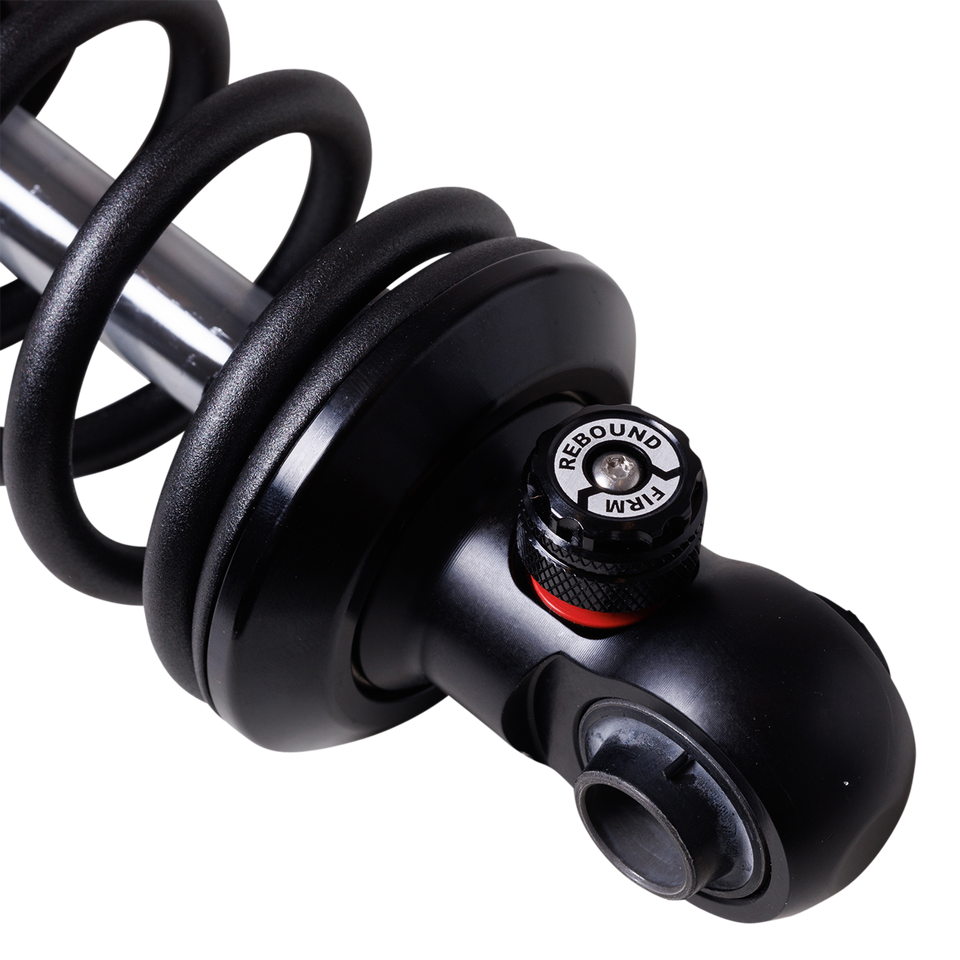

FOX IFP-R V-Twin rear shocks have an internal floating piston to separate the nitrogen gas from the shock oil, maintaining damping control no matter how long you ride. Twelve distinct clicks of our wide-range internal rebound control allow you to tune the rebound rate to balance out your spring preload, keeping your rear wheel firmly planted on the road. Our vehicle-specific damping and linear spring rates gives you a confident connection to the road while soaking up the bumps mile after mile, a key component of the FOX rebound adjustable design.
897-27-021 Also Fits
Year | Make | Model | Position | Price |
---|---|---|---|---|
1991 | Harley-Davidson | FXLR Low Rider Custom | Rear | $999.99 |
1992 | Harley-Davidson | FXLR Low Rider Custom | Rear | $999.99 |
1993 | Harley-Davidson | FXLR Low Rider Custom | Rear | $999.99 |
1994 | Harley-Davidson | FXLR Low Rider Custom | Rear | $999.99 |
PART NUMBER | 897-27-021 |
FEATURES |
Model-specific optimized ride tune 12-position adjustable rebound Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch 6061-T6 aluminum type III hard anodized body Fully rebuildable and revalvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch low friction, super-finished hard chrome shaft Matte black spring and black anodized preload ring |
SERIES | Street Performance |
TRAVEL | 3.8 |
EXTENDED LENGTH | 14 |
COMPRESSED LENGTH | 10.24 |
TOP MOUNT | Eyelet |
BOTTOM MOUNT | Eyelet |

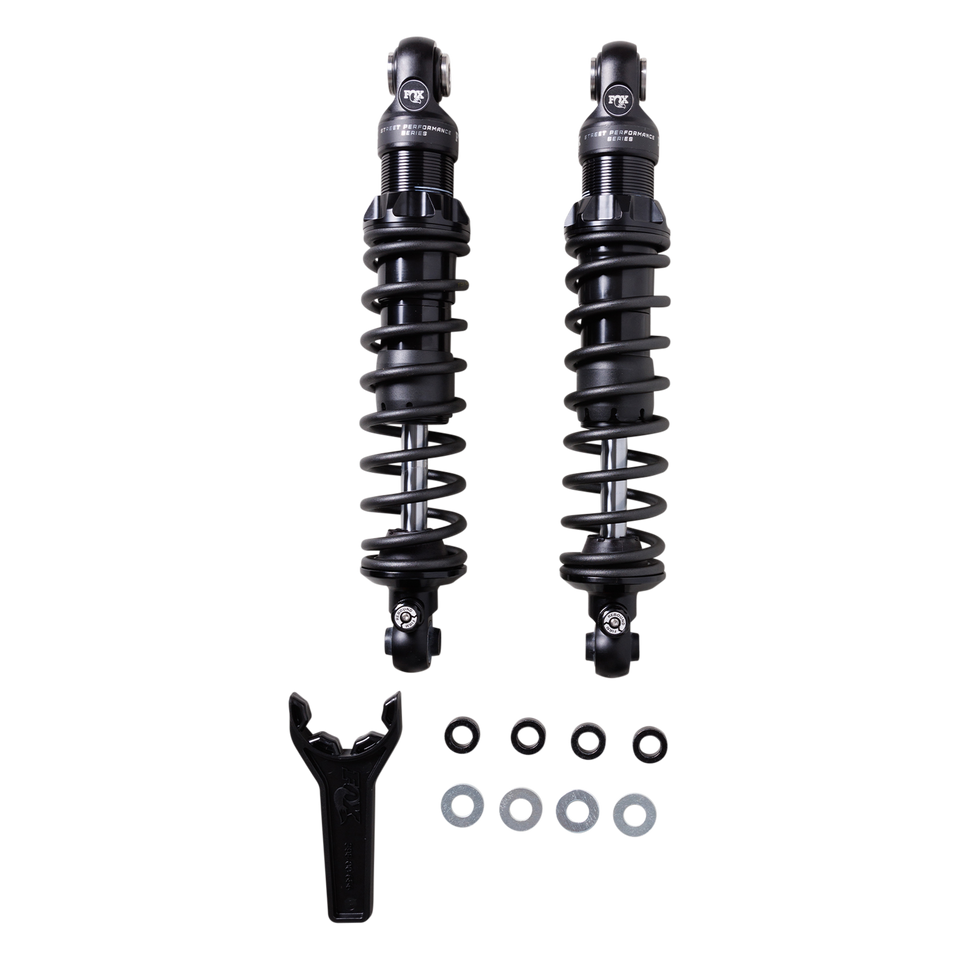

What's In The Box?
