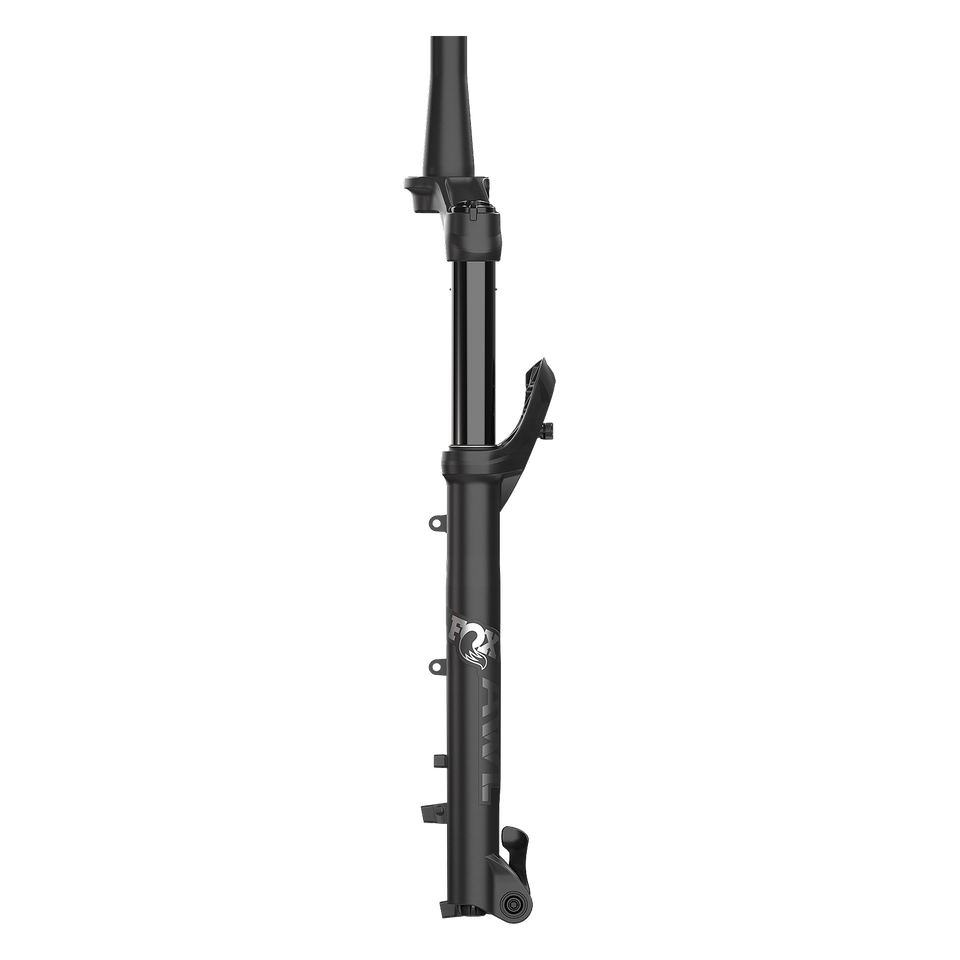

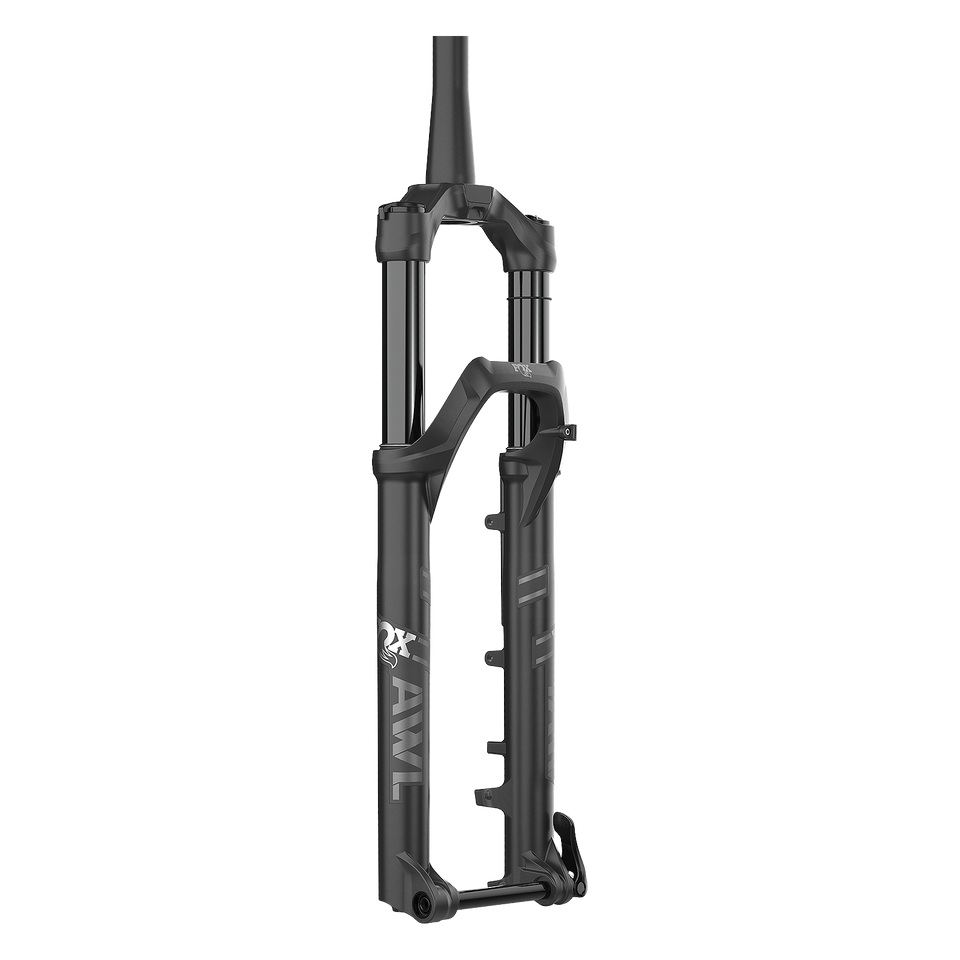

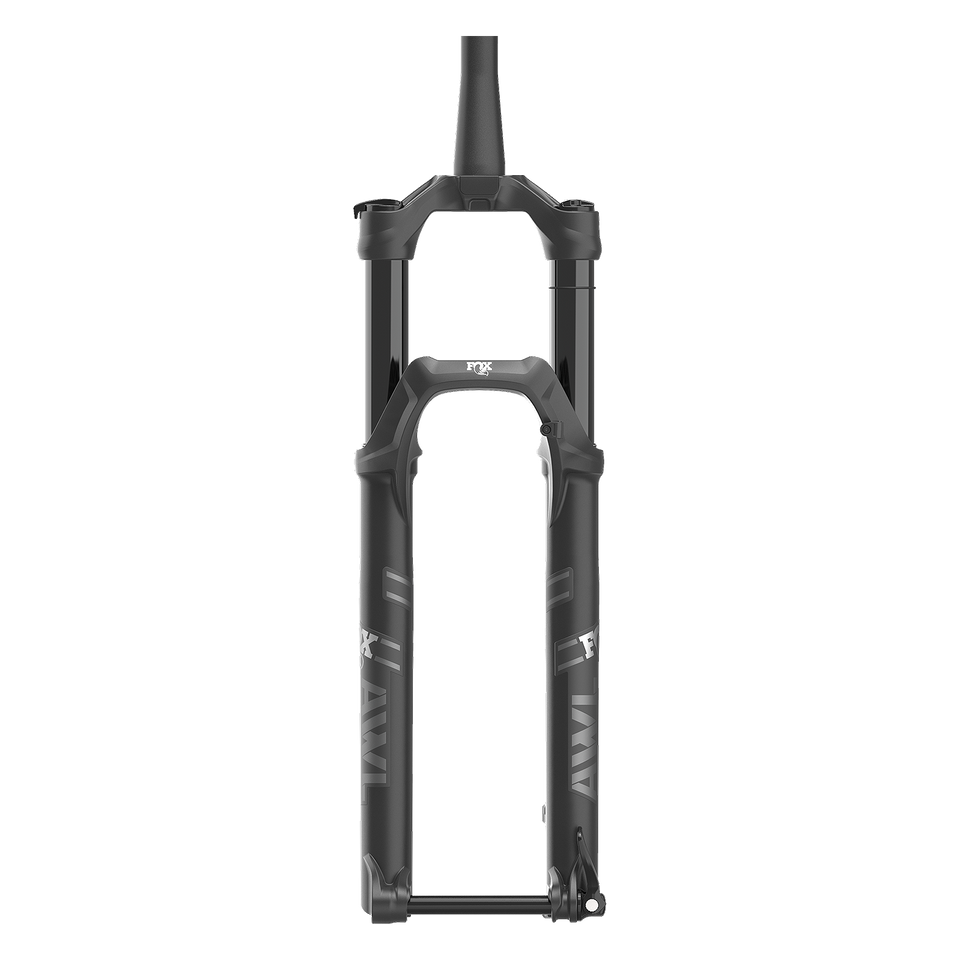

FOX AWL - RAIL

29in Wheel Size / 100mm Travel

$899.00

FOX AWL - RAIL

Low Stock

Notify When In Stock

View Cart Check Out
Free Shipping Over $79 30 Day Returns

AWL: Adventure Without Limits. Designed to bring highly evolved, broadly tunable, super capable, ultra-reliable suspension to the cycling SUV market. Whether you are racing the clock to fit in another lap, or riding further than you have ever before, AWL suspension is here to make every ride limitless.

PART NUMBER 910-21-293
SERIES AWL
CHASSIS e-Optimized
WHEEL SIZE 29in
TRAVEL 100mm
DAMPER RAIL
DAMPER CONTROLS Sweep-Adj
AXLE 15QRx110
RAKE 44mm
STEERER 1.5 Tapered
UPPER TUBE FINISH Black Anodized
AIR CHANNELS N/A
BLEEDERS N/A
FLOATING AXLE N/A
ROTOR SIZE 160 direct Post Mount, Up to 230 compatible
MUD GUARD MOUNT N/A
AIR SPRING N/A
STARTING WEIGHT 2070g
What's In The Box?
  • Star Nut
  • Brake Hose Clip
  • 3 x Volume Spacers
  • Owners Manual
  • FOX Sticker
Shipping & returns policy

SHIPPING POLICY

Products are delivered Australia wide using Startrack. Shipping costs are influenced by the size and weight of the product and your location, exact shipping costs are calculated in the shopping cart and will be added to the order total before checkout.

Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.

Definitive

E-SUV

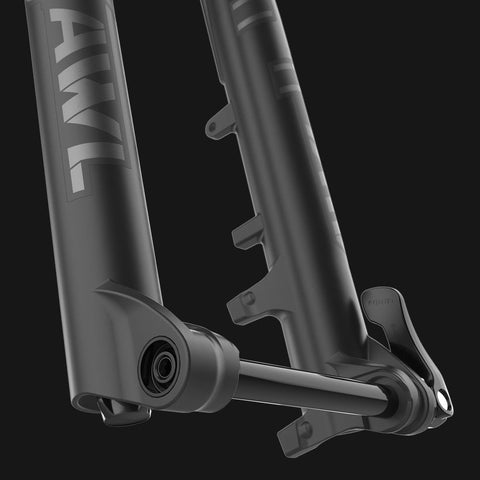

  • E-SUV OPTIMIZED

    AWL is built on proven, high-performance suspension design to handle the greater demands of riding farther, faster and hauling more gear with full-power e-bikes and e-SUVs.

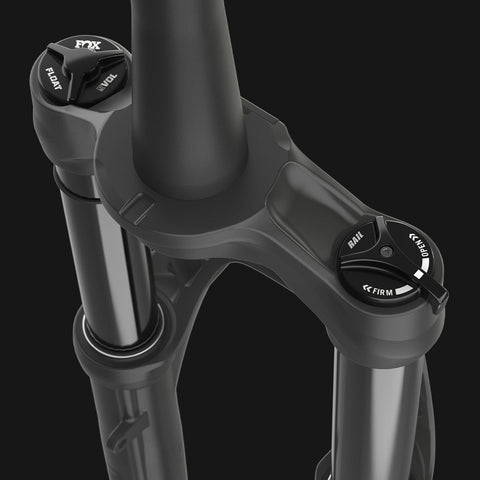

  • RACE PEDIGREE

    The AWL features 34mm stanchions, tracking precisely without unwanted flex regardless of the terrain. This fork is rigorously tested to withstand a 169kg total weight rating.

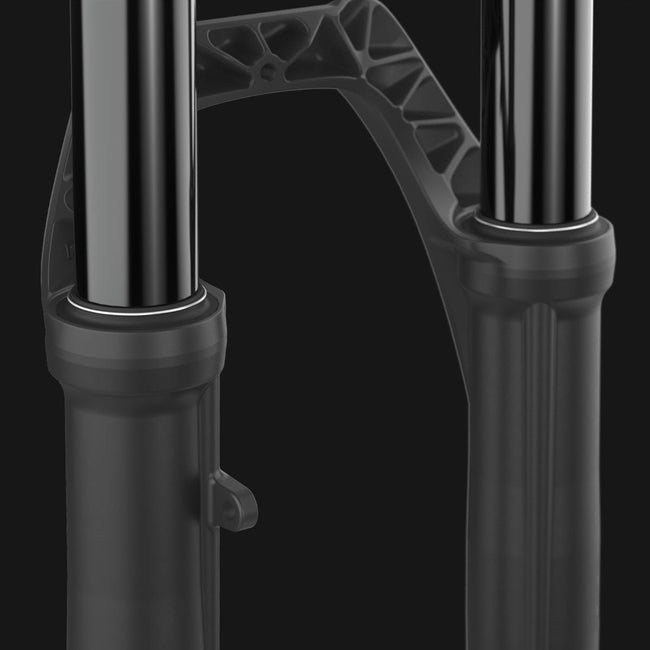

  • ADVENTURE READY

    Fender, rack and light mounts are integrated into the fork for optimal compatibility, durability and versatility. Available in both 27.5 and 29 wheels sizes.

E-SUV OPTIMIZED

AWL is built on proven, high-performance suspension design to handle the greater demands of riding farther, faster and hauling more gear with full-power e-bikes and e-SUVs.

RACE PEDIGREE

The AWL features 34mm stanchions, tracking precisely without unwanted flex regardless of the terrain. This fork is rigorously tested to withstand a 169kg total weight rating.

ADVENTURE READY

Fender, rack and light mounts are integrated into the fork for optimal compatibility, durability and versatility. Available in both 27.5 and 29 wheels sizes.

TUNING & MANUALS

  • 01

    Owners Manuals

    Full overview manual including setup, care and general usage.

  • 02

    Service Intervals

    FOX recommends that you have maintenance performed according to the service intervals.

    Learn More
  • 03

    Installation Guide

    Instructions on how to safely install this fork on your bike.

    Learn More
