FOX 40 FACTORY - GRIP X2
Target locked on the top step of the podium and developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. The GRIP X2 damper now offers more tunability and traction than ever before, ensuring the 40 stays planted in the hot seat.
| PART NUMBER | 910-21-280 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 29in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 52mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
| PART NUMBER | 910-21-281 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 29in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 52mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
| PART NUMBER | 910-21-306 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 27.5in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 48mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
SHIPPING POLICY
Products are delivered Australia wide using Startrack. Shipping costs are influenced by the size and weight of the product and your location, exact shipping costs are calculated in the shopping cart and will be added to the order total before checkout.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
| PART NUMBER | 910-21-280 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 29in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 52mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
| PART NUMBER | 910-21-281 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 29in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 52mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
| PART NUMBER | 910-21-306 |
| SERIES | Factory |
| CHASSIS | Standard |
| WHEEL SIZE | 27.5in |
| TRAVEL | 203mm |
| DAMPER | GRIP X2 |
| DAMPER CONTROLS | HSC - LSC - HSR - LSR |
| AXLE | 20TAx110 |
| RAKE | 48mm |
| STEERER | 1.125 Straight |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | Yes |
| BLEEDERS | Yes |
| FLOATING AXLE | Yes |
| ROTOR SIZE | 203 direct Post Mount, Up to 230 compatible |
| MUD GUARD MOUNT | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 2745g (40, 29, F-S, 200, Grip X2, Kabolt) |
SHIPPING POLICY
Products are delivered Australia wide using Startrack. Shipping costs are influenced by the size and weight of the product and your location, exact shipping costs are calculated in the shopping cart and will be added to the order total before checkout.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
-
GRIP X2
-

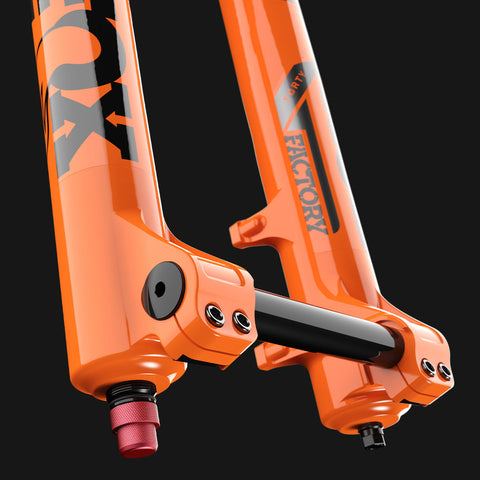

FLOATING AXLE
-
LOWER LEG BLEEDERS AND BYPASS CHANNELS
GRIP X2
FLOATING AXLE
LOWER LEG BLEEDERS AND BYPASS CHANNELS
TUNING & MANUALS
-
02
Service Intervals
Learn MoreFOX recommends that you have maintenance performed according to the service intervals.
