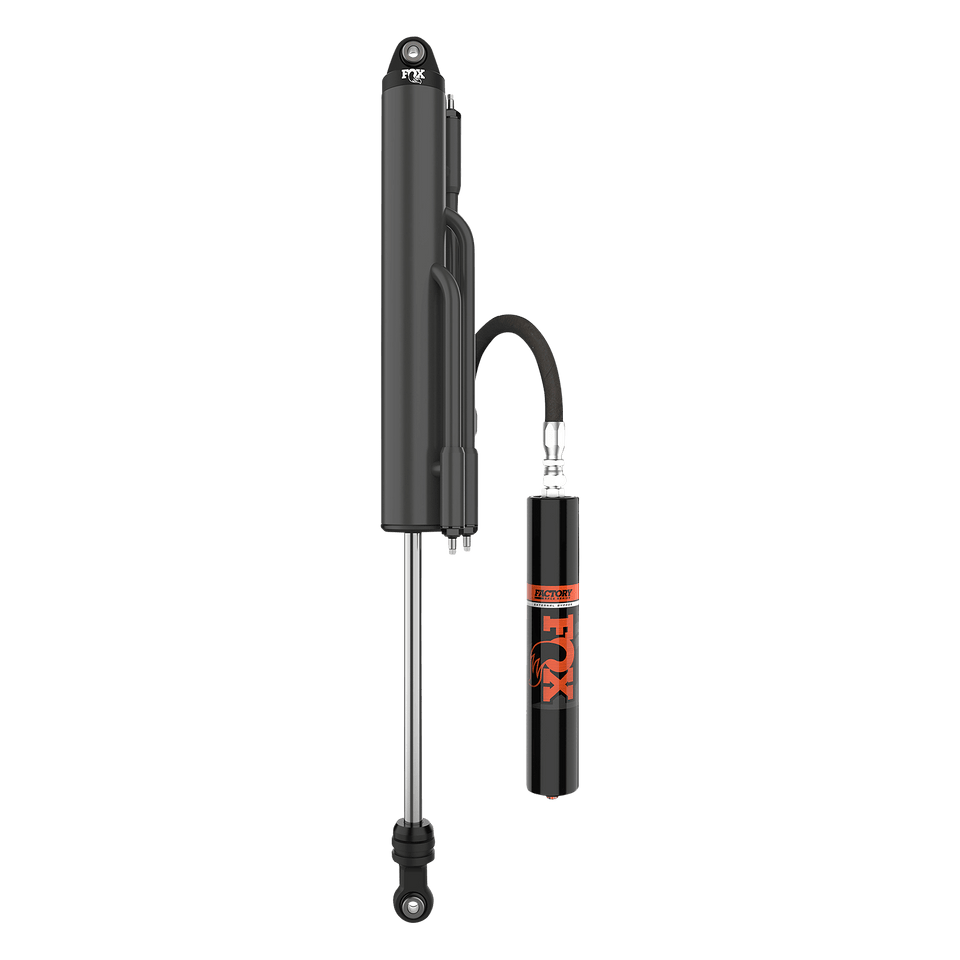

FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (RIGHT)
SKU: 981-30-431-R
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There’s no questioning whether they’re race proven, but in the words of Bob Fox, “we’re never done.” In that spirit, we’ve revitalized our tried-and-true externally adjustable position sensitive damping architecture to deliver all-new standards of performance and durability, all while streamlining the production process.
The MAC Piston is now standard on all External Bypass shocks. Click here to learn more.
| PART NUMBER | 981-30-431-R |
| FEATURES |
NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat. 17-4 H900 hard chrome plated stainless steel shaft. Owner serviceable and rebuildable. JM92 MIL-SPEC oil developed specifically for off-road racing. Black Anodized CNC Machined Aluminum Components |
| SERIES | Factory Race |
| TRAVEL | 16 |
| PISTON | Updated MAC Piston |
| VALVING | 807-24-600 |
| SEALS | 803-04-025 |
| EXTENDED LENGTH | 41.46 |
| COMPRESSED LENGTH | 25.6 |
| PART NUMBER | 981-30-431-R |
| FEATURES |
NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat. 17-4 H900 hard chrome plated stainless steel shaft. Owner serviceable and rebuildable. JM92 MIL-SPEC oil developed specifically for off-road racing. Black Anodized CNC Machined Aluminum Components |
| SERIES | Factory Race |
| TRAVEL | 16 |
| PISTON | Updated MAC Piston |
| VALVING | 807-24-600 |
| SEALS | 803-04-025 |
| EXTENDED LENGTH | 41.46 |
| COMPRESSED LENGTH | 25.6 |
MANUALS & DOCUMENTS
-
01
OWNER'S MANUAL
Download ManualFull overview manual including tuning, installation, and general owner's manual.
-
03
SERVICE
Get ServiceKeep your suspension performing at factory levels. Get service or upgrade your suspension.
