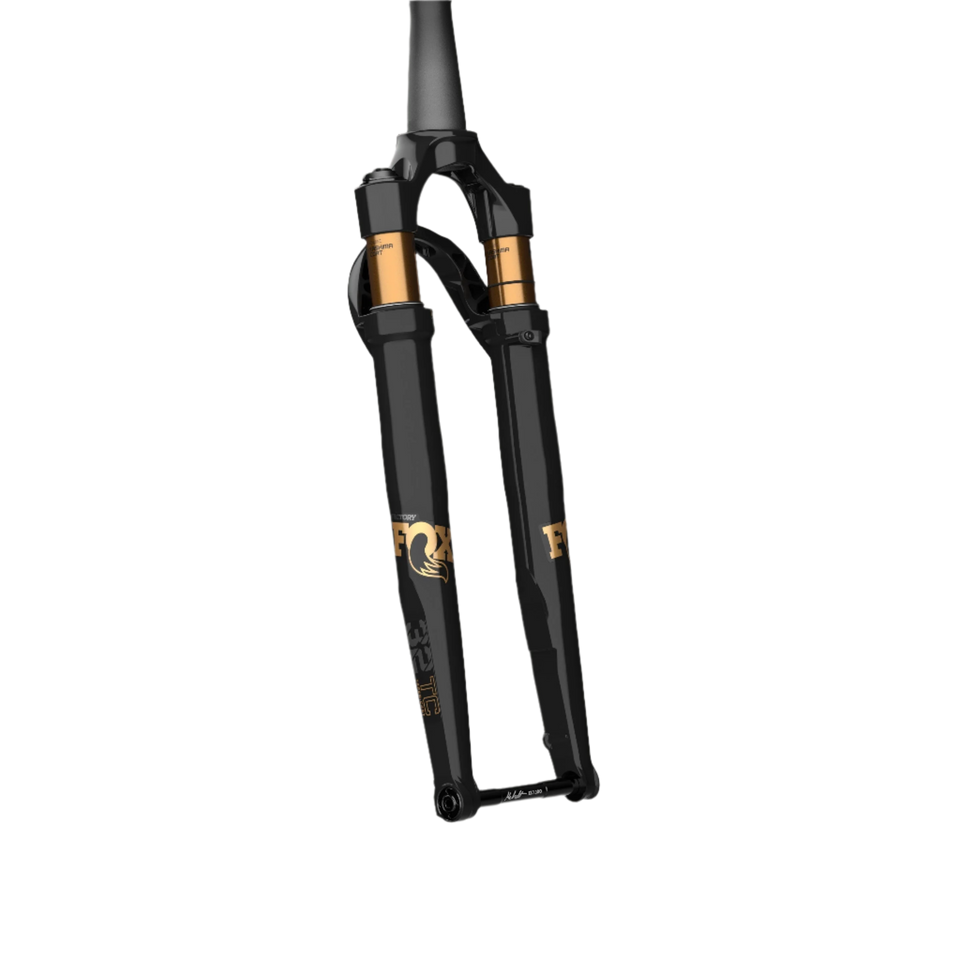

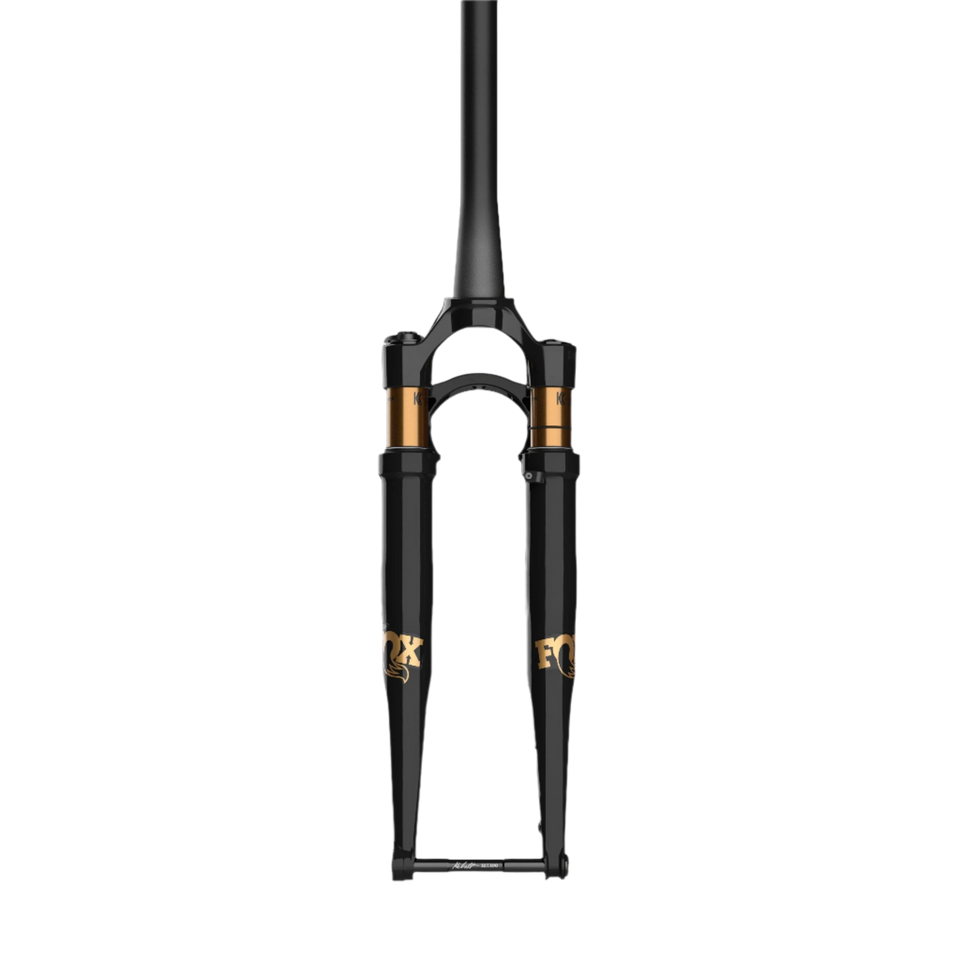

FOX 32 Factory TC
SMOOTHER, FASTER, MORE CONFIDENT
The lightest suspension fork FOX has ever built, the all-new 32 Taper-Cast Gravel Fork has arrived. It’s time to ditch the flex stem and undamped leaf springs; suspending the bike greatly improves rider experience, increases control, takes the edge off extended gravel rides and dramatically expands the terrain you can cover.
Your FOX 32 Taper-Cast fork:
| Part Number | 910-20-256 |
| Rake | 45mm |
| Chassis | Taper-Cast |
| Wheel Size | 700c |
| Series | Factory |
| Travel | 40mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Orange |
| Axle | Kabolt 12x100 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-139 |
| Rake | 45mm |
| Chassis | Taper-Cast |
| Wheel Size | 700c |
| Series | Factory |
| Travel | 40mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 12x100 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-138 |
| Rake | 50mm |
| Chassis | Taper-Cast |
| Wheel Size | 700c |
| Series | Factory |
| Travel | 40mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 12x100 |
| Steerer | 1.5 Tapered |
FOX 32 Factory Taper-Cast Specs
Upper Tube Finish: Kashima Coat
Rotor Size: 160 direct Flat Mount, up to 180 compatible
Fender Mount: Included full fender mount hardware
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1226g
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
FOX 32 Factory Taper-Cast Specs
Upper Tube Finish: Kashima Coat
Rotor Size: 160 direct Flat Mount, up to 180 compatible
Fender Mount: Included full fender mount hardware
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 1226g
Tuning & Product Manuals
Shipping Policy
SHIPPING POLICY
Products are delivered Australia wide using Startrack*.
We are pleased to offer Free Shipping on all orders over $79 within Australia. For orders under $79, a flat rate shipping fee of $9 will be applied at checkout.
Free Shipping:
- All orders over $79 qualify for free standard shipping.
- Free shipping is automatically applied at checkout.
Flat Rate Shipping:
- Orders under $79 will be charged a flat shipping rate of $9.
- This flat rate is applicable for standard shipping only.
Please note that shipping times may vary based on your location and the selected shipping method. We strive to process and ship orders as quickly as possible.
Orders are dispatched within 2 business days and shipping times are estimated at between 3-10 business days depending on your location within Australia. Please be aware deliveries outside of metropolitan areas may take longer. This service will require your signature when the parcel is delivered. If you are not available at time of delivery, a card will be left for you to collect your parcel from the nearest Post Office.
*Please note we are unable to ship to PO boxes.
PURPOSE BUILT
Developed in conjunction with emergent gravel bike designs, the 32 Taper-Cast features a sleek drop crown profile and new knob shapes that drastically improve downtube clearance, for fitment on all frame sizes and styles. A sleek, reverse arch design further improves fitment, decreases frontal area for better aerodynamics and provides stiffness through the arch matrix design.
LIGHTER
The lightest fork FOX has ever designed and fabricated, the incredible 1226g weight retains functionality such as integrated fender mounts, 160mm and 180mm flat mount compatibility. The fork also features our lightweight Kabolt thru axle, and a longer steerer to allow for greater fitment options on gravel frames.
GRAVEL TUNED
Equipped with FOX’s proven FIT4 or GRIP damper options, this lightweight package retains all the tunability of its mountain lineage, including adjustable travel options up to 50mm. The lightweight, short-travel optimized air spring requires fewer, if any, volume spacers and the design employs our lower leg air/oil bypass channels.
