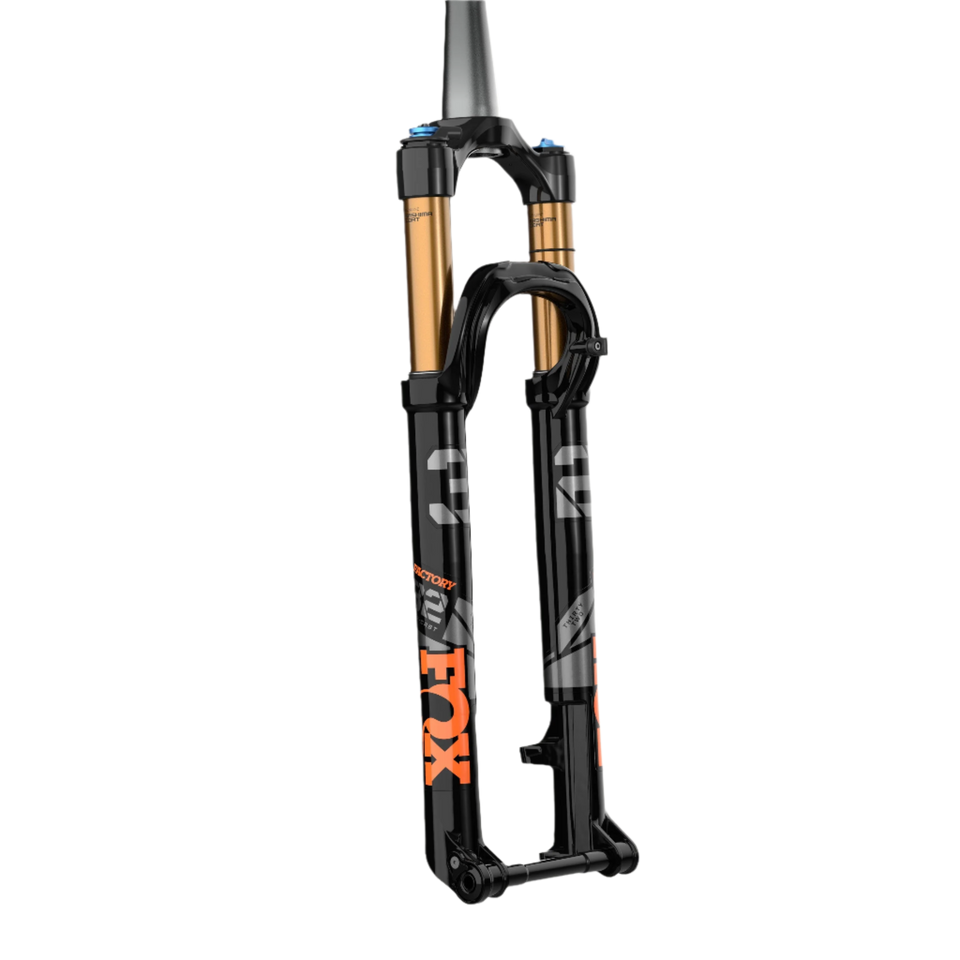

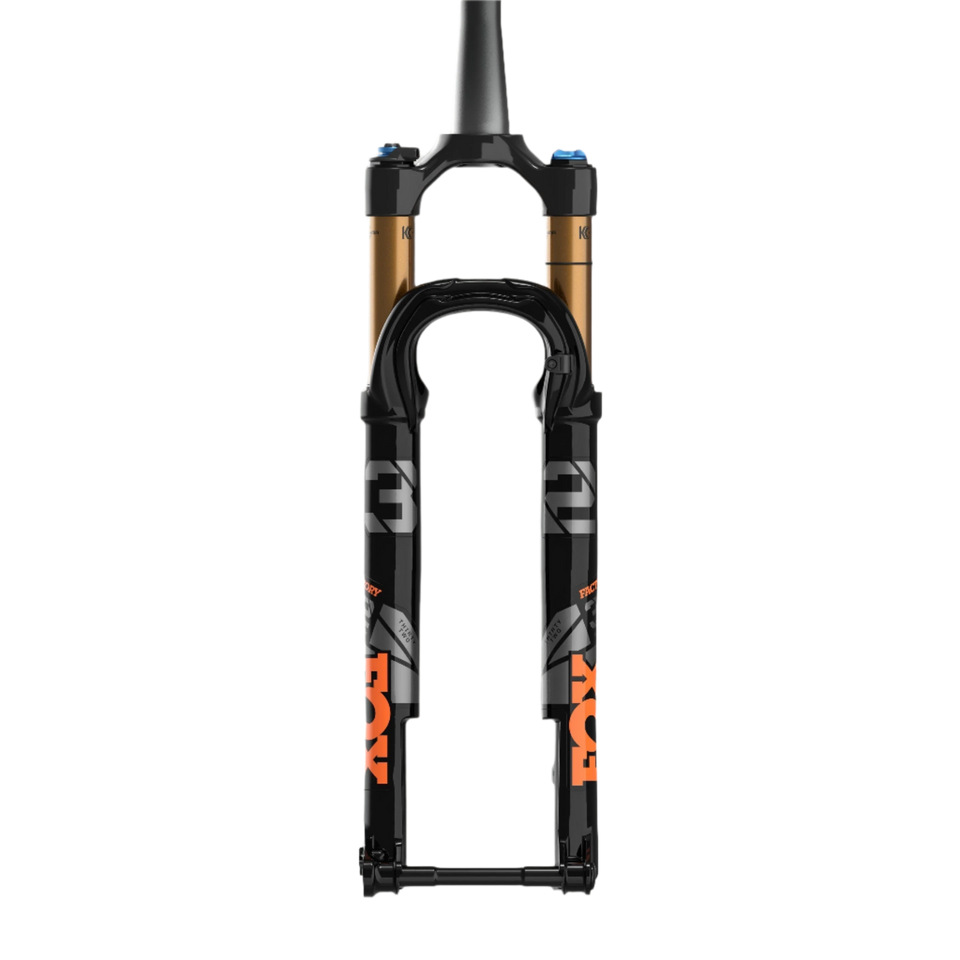

FOX 32 Factory SC
ULTRA LIGHTWEIGHT XC WEAPON
32 Step-Cast’s pioneering lower leg shape isn’t just for looks, its narrow stance and stepped design saves weight, decreases frontal area, and provides clearance for the spokes and brake rotor.
Your FOX 32 Step-Cast fork:
| Part Number | 910-20-223 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 100 |
| Steerer | 1.5 Tapered |
| Part Number | 910-20-222 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
| Part Number | 910-20-221 |
| Rake | 51mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 100 |
| Steerer | 1.5 Tapered |
| Part Number | 910-20-220 |
| Rake | 51mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Black |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
| Part Number | 910-20-219 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | 3 Position |
| Color | Shiny Orange |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-039 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | Psh-Lk |
| Color | Shiny Black |
| Axle | Kabolt 100 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-038 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | Psh-Lk |
| Color | Shiny Black |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-036 |
| Rake | 51mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | Psh-Lk |
| Color | Shiny Black |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
| Part Number | 910-21-035 |
| Rake | 44mm |
| Chassis | Step-Cast |
| Wheel Size | 29 |
| Series | Factory |
| Travel | 100mm |
| Damper | FIT4 |
| Damper Controls | Psh-Lk |
| Color | Shiny Orange |
| Axle | Kabolt 110 |
| Steerer | 1.5 Tapered |
FOX 32 Factory Step-Cast Specs
Upper Tube Finish: Kashima Coat
Rotor Size: 160 Direct Post Mount, (27.5 up to 180 compatible, 29 up to 203 compatible)
Air Spring: FLOAT EVOL
Steerer: 1.5 Taper
Starting Weight: 3.06 lb / 1387 g (F-S, 32 SC, 27.5”, 100mm Travel, Kabolt 110, 3Pos-Adj)*
Tuning & Product Manuals
